Show Table and Index Ranges (T)
Show Table and Index Ranges (T)

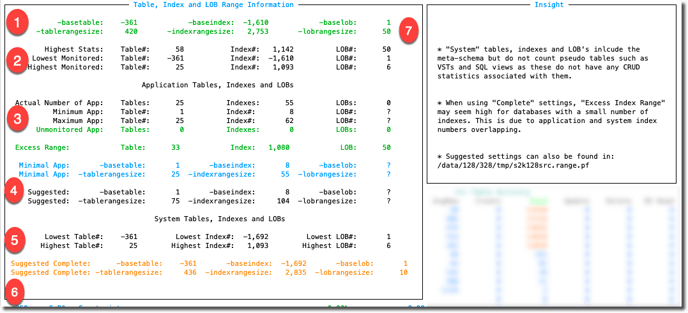

There are three sections to this window. The top shows database server startup parameters, the middle "Application Tables and Indexes" section, and the bottom "System Tables and Indexes" section. Each section is documented separately.
| ProTop RT Label |
Description |
| -basetable |
Current value of database startup parameter -basetable |
| -tablerangesize |
Current value of database startup parameter -tablerangesize |
| Highest Stats Table# |
Highest possible application table number statistics can be tracked on (possibly more than tables currently defined) |
| Lowest Monitored Table |
Lowest application table number being monitored statistically |
| Highest Monitored Table |
Highest application table number being monitored statistically |
| -baseindex |
Current value of database startup parameter -baseindex |
| -indexrangesize |
Current value of database startup parameter -indexrangesize |
| Highest Stats Index# |
Highest possible application index number statistics can be tracked on (possibly more than indexes currently defined) |
| Lowest Monitored Index |
Lowest application index number being monitored statistically |
| Highest Monitored Index |
Highest application index number being monitored statistically |
Second section, Application Tables and Indexes
| ProTop RT Label |
Description |
| Actual Number of App Tables |
Number of tables in the database |
| Minimum App Table# |
Lowest number application table |
| Maximum App Table# |
Highest number application table |
| Unmonitored App Tables |
Number of database tables where statistical info is not being collected |
| Excess Table Range |
The number of available entries in the table statistics VST: i.e. 436 - 1 - 25 = 410 |
| Minimal App -basetable |
Lowest possible setting for the database startup parameter -basetable in order to track access statistics for all application tables |
| Minimal App -tablerangesize |
Lowest possible setting for the database startup parameter -tablerangesize in order to track access statistics for all application tables |
| Suggested -basetable |
Suggested setting for the database startup parameter -basetable in order to track access statistics for all application tables |
| Suggested -tablerangesize |
Suggested setting for the database startup parameter -tablerangesize in order to track access statistics for all application tables |
| Actual Number of App Indexes |
Number of indexes in the database |
| Minimum App Index# |
Lowest number application index |
| Maximum App Index# |
Highest number application index |
| Unmonitored App Indexes |
Number of database indexes where statistical info is not being collected |
| Excess Index Range |
The number of available entries in the index statistics VST: i.e. 2753 - 0 - 62 = 2691 |
| Minimal App -baseindex |
Lowest possible setting for the database startup parameter -baseindex in order to track access statistics for all application indexes |
| Minimal App -indexrangesize |
Lowest possible setting for the database startup parameter -indexrangesize in order to track access statistics for all application indexes |
| Suggested -baseindex |
Suggested setting for the database startup parameter -baseindex in order to track access statistics for all application indexes |
| Suggested -indexrangesize |
Suggested setting for the database startup parameter -indexrangesize in order to track access statistics for all application indexes |
Third section, System Tables and Indexes
| ProTop RT Label |
Description |
| Lowest Table# |
The lowest table number of all system tables |
| Highest Table# |
The highest table number of all system tables |
| Suggested Complete -basetable |
Suggested setting for the database startup parameter -basetable in order to track access statistics for all system and application tables |
| Suggested Complete -tablerangesize |
Suggested setting for the database startup parameter -tablerangesize in order to track access statistics for all system and application tables |
| Lowest Index# |
The lowest index number of all system indexes |
| Highest Index# |
The highest index number of all system indexes |
| Suggested Complete -baseindex |
Suggested setting for the database startup parameter -baseindex in order to track access statistics for all system indexes |
| Suggested Complete-indexrangesize |
Suggested setting for the database startup parameter -indexrangesize in order to track access statistics for all system indexes |
