ProTop Properties (&) (ProTop 328+)

View and control ProTop RT Session Properties.

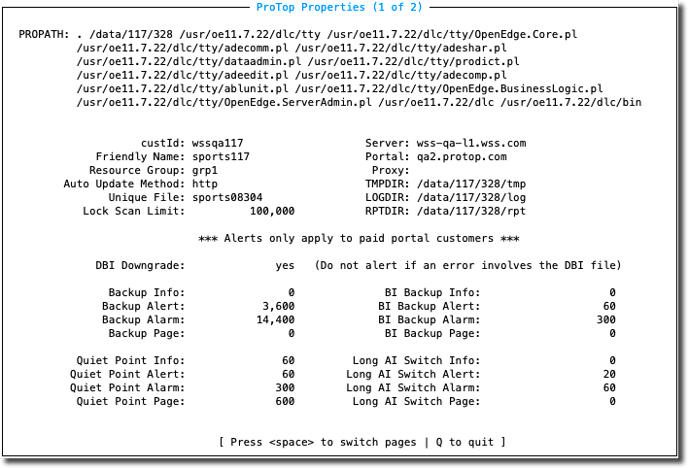

Show ProTop Properties (&) - Screen 1 of 2 (view only)

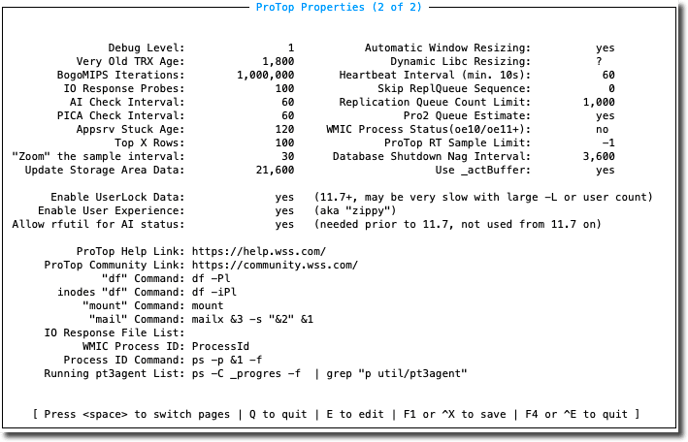

Screen 2 of 2 (editable properties)

CAVEAT: You should not edit any of these properties unless you already KNOW EXACTLY what you're doing. Even more specifically, unless someone from White Star Software or one of its distributors tells you SPECIFICALLY what to change, don't touch it.

Field Descriptions

ProTop RT Label Description
custId Unique identifier for each ProTop installation/customer
Friendly Name Short descriptor for each resource (anything ProTop monitors)
Resource Group Name for a set of grouped resources, usually database server schema holders
Auto Update Method Either 'curl' or 'http.' The method used to download updated data.
Unique File Used internally by ProTop
Lock Scan Limit Maximum lock table entries to scan before stopping. There are known issues when scanning very large lock tables.
Server The name of the box where the database server process is running, ie, the server where you're running this command
Portal ProTop web portal for a specific installation. If you use 'pt3agents,' they will upload data to this web portal.
Proxy HTTP proxy server (if necessary)
TMPDIR Directory where all temp files are stored
LOGDIR Directory where all log files are stored
RPTDIR Directory where all report files are stored
DBI Downgrade If an error message relates to a DBI file 'yes,' downgrade the PAGE to an ALARM (for paid customers)
Backup Info Seconds a backup takes before an info alert is issued and uploaded to the web portal
Backup Alert Seconds a backup takes before an alert is issued and uploaded to the web portal
Backup Alarm Seconds a backup takes before an alarm is issued and uploaded to the web portal
Backup Page Seconds a backup takes before a page is issued and uploaded to the web portal
Quiet Point Info Seconds a quiet point exists before an info alert is issued and uploaded to the web portal
Quiet Point Alert Seconds a quiet point exists before an alert is issued and uploaded to the web portal
Quiet Point Alarm Seconds a quiet point exists before an alarm is issued and uploaded to the web portal
Quiet Point Page Seconds a quiet point exists before a page is issued and uploaded to the web portal
BI Backup Info Seconds the BI file phase of a backup takes before an info alert is issued and uploaded to the web portal
BI Backup Alert Seconds the BI file phase of a backup takes before an alert is issued and uploaded to the web portal
BI Backup Alarm Seconds the BI file phase of a backup takes before an alarm is issued and uploaded to the web portal
BI Backup Page Seconds the BI file phase of a backup takes before a page is issued and uploaded to the web portal
Long AI Switch Info Seconds it takes to archive and switch the busy AI file before an info alert is issued and uploaded to the web portal
Long AI Switch Alert Seconds it takes to archive and switch the busy AI file before an alert is issued and uploaded to the web portal
Long AI Switch Alarm Seconds it takes to archive and switch the busy AI file before an alarm is issued and uploaded to the web portal
Long AI Switch Page Seconds it takes to archive and switch the busy AI file before a page is issued and uploaded to the web portal
Debug Level For use by White Star Software or its distributors to debug problems with the ProTop installation
Very Old Trx Age Seconds a transaction is open before the display properties are changed
BogoMIPS Iterations Number of iterations to execute when calculating BogoMIPS
IO Response Probes Number of disk reads used to calculate IO Response
AI Check Interval Interval seconds between AI status checks
PICA Check Interval Interval seconds between PICA status checks
Appsrv Stuck Age Seconds since an agent last changed before it is defined as "stuck"
Top X Rows The maximum number of rows certain processes can display in one group
Enable UserLock Data Access select VST files. Requires OpenEdge v11.7+
Enable User Experience Calculated speed of record reads from the buffer pool
Allow rfutil for AI status "yes" for OpenEdge versions prior to v11.7
ProTop Help Link HTML Link for ProTop Help
ProTop Community Link HTML Link for ProTop Community
"df' command Custom command to calculate disk space usage
Inodes "df" Command Command to calculate space usage based on inodes
"mount" command Preferred mount command for this OS
"mail" Command Command to execute when sending an email
IO Response File List File to be used when calculating IO Response Times
"Zoom" the sample interval Depreciated.
Update Storage Area Data How often should we report storage area Xref details to the portal?
WMIC Process ID Text of the ProcessId column label when WMIC is in use for process lists.
Process ID Command ps command to return a specific process' command line, alternate: 'ps -ef | grep " &1 "' (ps -p _should_ be *much* more efficient but isn’t really)
Running pt3agent List Return a list of running pt3agent processes.
Automatic Window Resizing Turn off support for automatically detecting window resizing (Unix only), any value other than "no" is a yes.
Dynamic Libc Resizing Use dynamic libc.so call for detecting resizing, any value other than "no" is a yes.
Heartbeat Interval (min. 10s) Frequency of heartbeats, minimum 10 seconds.
Skip ReplQueue Sequence Skip to replQueue sequence# - IOW skip orphans, 0 = don't skip any.
Replication Queue Count Limit Do not count every record in the replication queue if it is deeper than this.
Pro2 Queue Estimate Estimate queue depth proportionally when queues get too deep to count.
WMIC Process Status (oe10/oe11+) default = yes for oe10, no for oe11+, if no then we will use System.Management.dll on Windows and avoid screen scraping.
ProTop RT Sample Limit Exit after N samples - only applies to ProTop RT, pt3agent ignores this.
Database Shutdown Nag Interval Nag interval for db shutdowns and crashes.
Use _actBuffer Do not use _actBuffer in dc/dashboard.p, 11.7 and 12.X introduced some new fields and populating them is done by scanning ALL of -B which can be quite slow.
